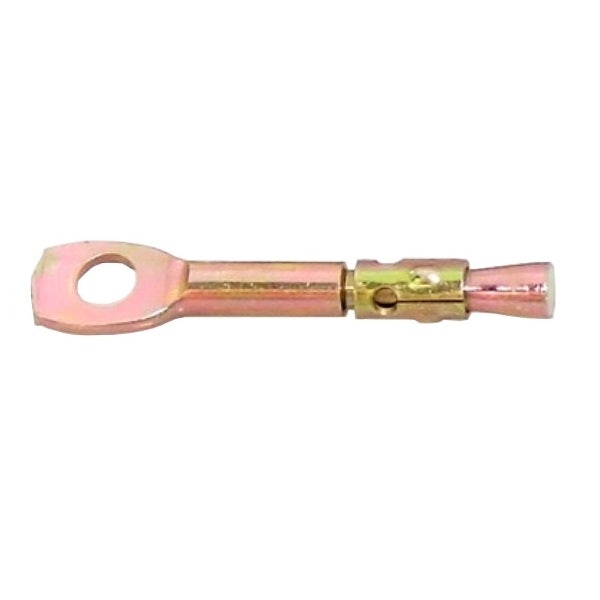

Wire Hanger 6mm Intermediate Masonary Fixing BZP - 100 Pack

Code:
NF290
Brand:
Free UK Delivery

This item is out of stock and not available to purchase.

The wire hanger is an expansion anchor for securing suspension wires in concrete, enabling fast and accurate installations of netting perimeter wire rope systems. Ideal for use as a fast-fit light-medium duty masonry intermediate fixing. Fast light-medium duty intermediate mason... Read More

Create a wishlist

"Good overall experience"

Mr Michael Nash

Description

The wire hanger is an expansion anchor for securing suspension wires in concrete, enabling fast and accurate installations of netting perimeter wire rope systems.
Ideal for use as a fast-fit light-medium duty masonry intermediate fixing.

  • Fast light-medium duty intermediate masonry fixing for netting
  • Ideal for netting installations over 100 metre squared especially 19mm & 28mm nets.
  • Simply drill an 6mm X 40mm hole insert fully and pull firmly backwards.
  • Manufactured in BZP mild steel.

Dimensions:

  • Requires a 6mm diameter hole
  • Overall length : 55mm
  • Hole depth required : 40mm
  • Tensile load rating 1.5KN
  • Eyelet diameter : 6mm

Usage/Spacings:

75mm and 50mm mesh nets : 1m
28mm mesh nets : 0.5m
19mm mesh nets : 0.3m

Installation:

  • Mark required position of the fixing
  • Drill a 6mm diameter hole to a minimum depth of 40mm
  • Brush / blow-out all dust and loose material
  • Insert fixing fully and pull firmly to lock in position
  • Do not use fixing less than 35mm from an outside edge or corner

There are no product specifications to show.
