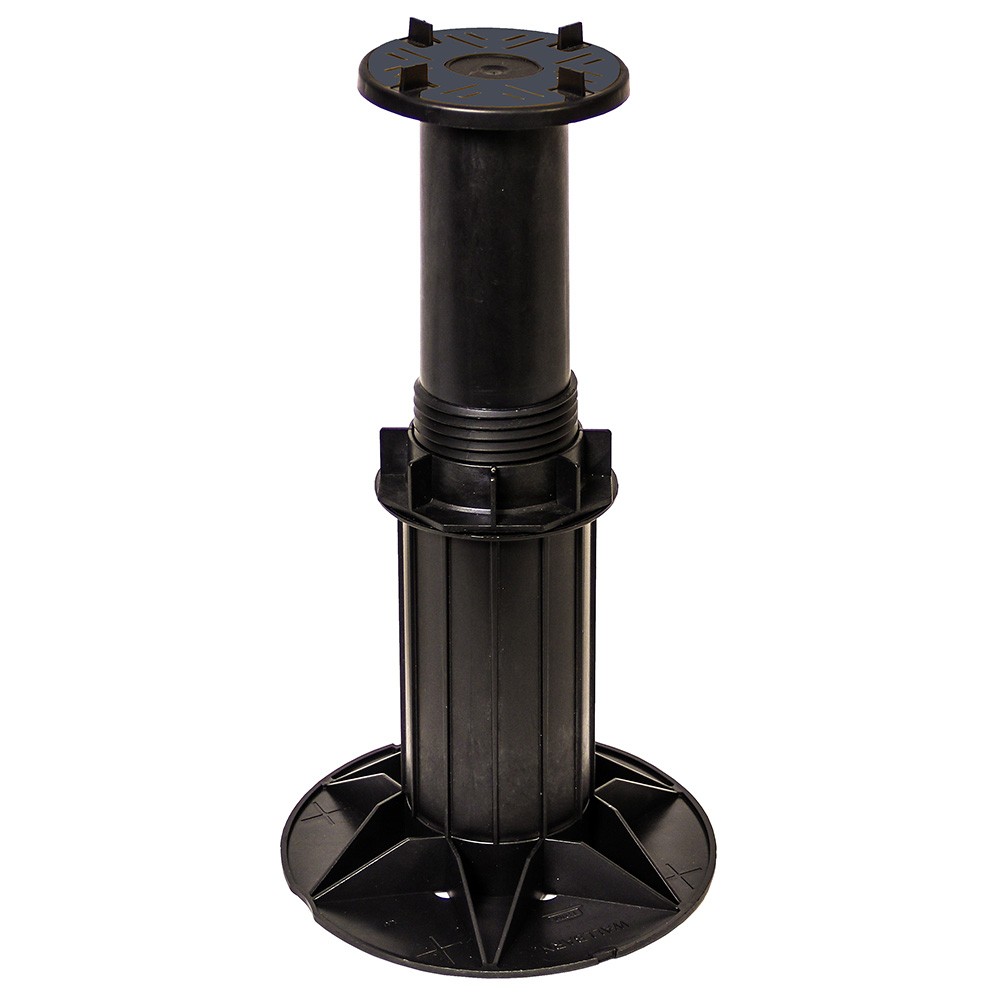

DISCON - Wallbarn Universal Adjustable Pedestal For Decking and Paving Height 330mm - 365mm

Name: DISCON - Wallbarn Universal Adjustable Pedestal For Decking and Paving Height 330mm - 365mm
Brand: Wallbarn
SKU: SP-UNIVERSAL-330-Z
Price: 7.81 GBP
Availability: Discontinued

Code:

SP-UNIVERSAL-330-Z

Brand:

Wallbarn

Looking to create a completely flat paved or decked surface on a structural deck? Wallbarn’s Universal adjustable pedestal range is suitable for both paving and decking and are available in heights from 35mm up to 380mm. They are particularly ideal for porcelain tiles o... Read More

View full product details

View questions about this product

Create a wishlist

Description

Looking to create a completely flat paved or decked surface on a structural deck?

Wallbarn’s Universal adjustable pedestal range is suitable for both paving and decking and are available in heights from 35mm up to 380mm. They are particularly ideal for porcelain tiles on flat roofs and podiums.

Even flat roofs are built to a small fall to allow adequate drainage. These durable adjustable pedestals have a telescopic stem which allow you to make millimetre-precise manual adjustments in height in order to achieve a flat upper surface.

Universal pedestals are a freestanding system, so no fixings are made through the membrane underneath, ideal for warm roofs and inverted waterproofing systems. They also come with an integrated acoustic shim on the headpiece.

The pedestals create a cavity between the sub-deck and the paving/decking surface which helps ventilate the structure and allows services such as pipes and cables to be hidden from view.

Paving applications

Positioning lugs create uniform spacing between each slab, allowing rainwater to run between and under the slabs, so no standing water is left on the surface
Being a suspended system, the weight of the slab holds everything in place
Height adjustments can be made whilst the slab is in place, saving time and labour
10mm high lugs mean they are ideal for supporting thin tiles
Lugs can be snapped by hand for stretcher bond and irregular laying patterns

Laying decking

Adjusting the height of the pedestals, rather than cutting furring’s means installers can install decking onto structural decks much more quickly
Pedestals are adjusted to accommodate the fall in the roof deck
Placed a maximum of 600mm apart, the joist bearers are simply slotted between the joist holders
A joist framework is constructed to create a sturdy, stable, weight-bearing surface to take the upper surfacing
The top decking is then fixed onto the joists using ordinary wood screws or hidden fixings
Height adjustments can be made whilst the timber joist framework is in place, saving time and labour
Raising the decking off the sub-deck allows water to drain freely under the decking so there is no standing water left on the surface, preventing ponding and associated slip hazards, and extending the lifespan of the timber.
Joists are not standing directly on the waterproofing membrane, or insulation, preventing damage to it.

Product Specification

Material: Virgin fibre injection moulded polypropylene

Weight Tolerance: Maximum Load 11,493 N = 1,171kg

End of Linear Behaviour: 6,700N = 683kg

Compressive Strength: + 20°C and - 40°C

Max Temperature: 75° C

Min Temperature: -40°C

Base Plate Diameter: 200mm

Height: 330mm to 365mm

Headpiece Diameter: 120mm

Lug Dimensions: 10mm x 2mm (4mm available upon request)

Distance between lugs: 55mm

Specification

Details

Height: 330mm - 365mm

Colour: Black

Material: Polypropylene

Decking Support: Pedestals
