Bright zinc plated and yellow passivated steel version NF287 for indoor use. The Eye Bolt sleeve anchor is a thin walled sleeve anchor suitable for use in concrete, stone, brickwork, perforated bricks and dense concrete blocks. For use as a heavy duty intermediate fixing on net ... Read More
Bright zinc plated and yellow passivated steel version NF287 for indoor use.

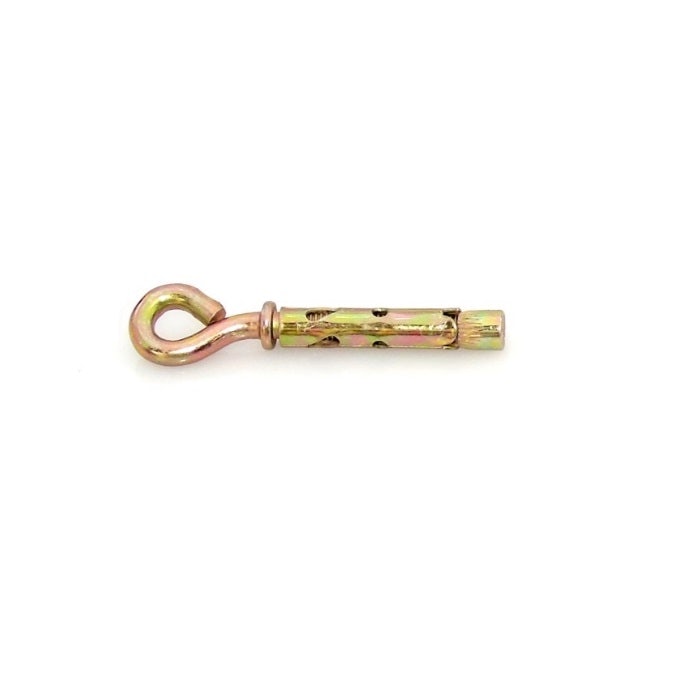

The Eye Bolt sleeve anchor is a thin walled sleeve anchor suitable for use in concrete, stone, brickwork, perforated bricks and dense concrete blocks.
For use as a heavy duty intermediate fixing on net installations that are subject to high loads, i.e. 19mm and 28mm net installations above 100 square metres.
Can also be used to carry and strain cross wires.
Suitable for use as a light-duty corner fixing on 75mm and 50mm net installations of 25 square metres or less.
Sleeve anchor : 8mm diameter by 45mm long
Internal eye diameter : 12mm
Recommended Tensile Loads : 0.6KN
Requires 8mm diameter hole 45mm deep, internal diameter of the eye 8mm
75mm and 50mm mesh nets : 1m
28mm mesh nets : 0.5m
19mm mesh nets : 0.3m
